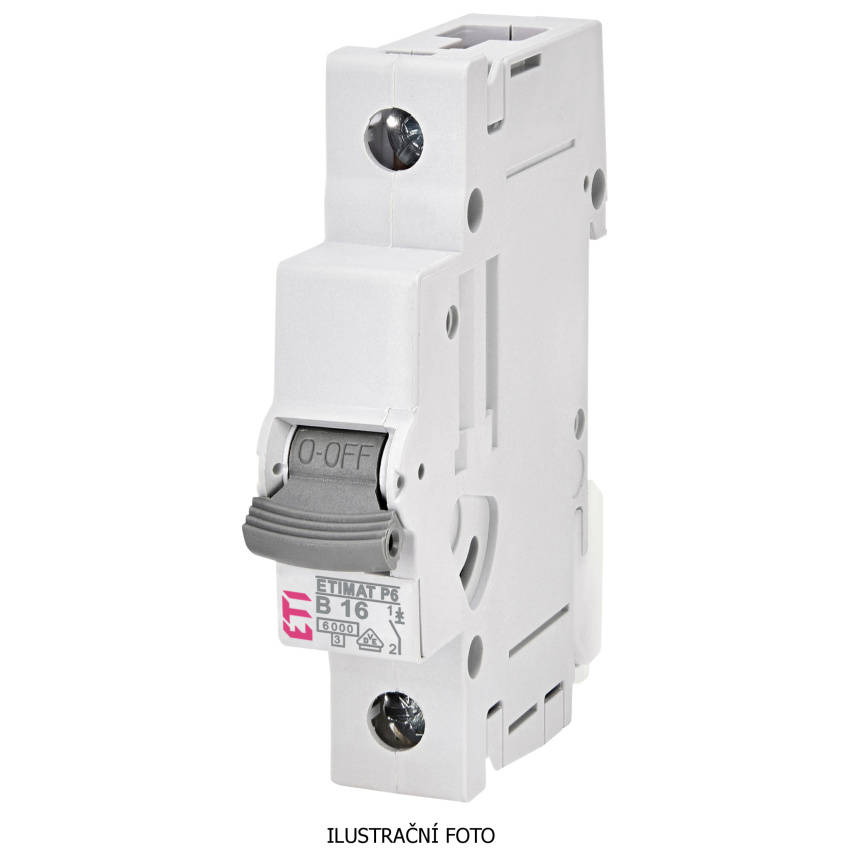

ETI JISTIČ ETIMAT P6 1P B10 6KA 001900008

Jistič, etimat p6 1p b10, funkce mcb, počet pólů 1, jmenovitý proud (a) 10, un (v) 240/415, jmenovitá frekvence (hz) 50/60, jmenovité impulsní výdržné napětí (kv) 6, zkratová odolnost (ka) 6, normy 60898-1, 60947-2, vstupní svorky (mm2) 1…25, vypínací charakteristika b, typ napětí ac, release characteristic b , number of poles (total) 1 , number of protected poles 1 , rated current 10 a, rated voltage 240/415 v, rated insulation voltage ui 500 v, rated impulse withstand voltage uimp 6 kv, rated short-circuit breaking capacity icn according to en 60898 at 230 v 6 ka, rated short-circuit breaking capacity icn according to en 60898 at 400 v 6 ka, rated short-circuit breaking capacity icu according to iec 60947-2 at 230 v 6 ka, rated short-circuit breaking capacity icu according to iec 60947-2 at 400 v 6 ka, voltage type ac , type of drive 50/60 hz, current limiting class 3 , suitable for flush-mounted installation true , concurrently switching neutral conductor true , over voltage category 3 , pollution degree 2 , additional equipment possible true , width in number of modular spacings 1 , built-in depth 70 mm, degree of protection (ip) ip20 , ambient temperature during operating -40…70 °c, connectable conductor cross section multi-wired 1…25 mm?, connectable conductor cross section solid-core 1…25 mm?
